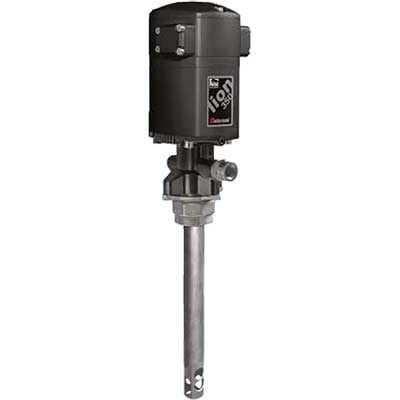

Balcrank Lion 350 60:1

Balcrank Lion 350 60:1

Lion™ 350 60:1 are Designed for 35 lb, 120 and 400 lb. containers. Ideal for the users that need reliable grease delivery and medium length systems that have multiple dispense points. This Lion grease pump delivers up to 4.4 lb/min (2 kg/min).

Call us TODAY at 727-835-0671 or
Toll Free at 800-761-4298

Get A Free Quote!

Model#:
1450-013 - Lion™ 350 60:1 grease 25-35 lbs
1450-012 - Lion™ 350 60:1 grease 120 lbs
1450-011 - Lion™ 350 60:1 grease 400 lbs
Fluid Types:
  • Grease up to NLGI-2

Specifications
Pump ratio 60:1
Cycles per lb/min @ 100 psi (7 bar) free flow 50
Operating air pressure range 20-145 psi (1.5-10 bar)
Max pump delivery 2.6 lb/min (1,200 g/min)
Pump delivery with NLGI-2, 68° F (20° C), 70 psi (5 bar) air pressure and 80 cylces per minute 1.1 lbs/min (500 g/min)
Max fluid stall pressure 8,700 psi (600 bar)
Air inlet 3/8" NPT(F)
Fluid outlet 3/8" NPT(F)
Effective Air Piston Diameter 3.15" (80 mm)
Wetted materials Cast Iron, Hard chromed steel, Steel, UHMWPE, NBR, PTFE, Viton®

Applications:
  • Agriculture/farm implements
  • Small auto/truck shops
  • Tire & transmission shops
  • In-plant medium volume use
  • Mining & construction
  • Truck fleets
  • Railroad/Mass transit
  • Lube trucks
  • Marine


Warning! Do not use any Lion™ series products with flammable fluids.

NOTE: Contact mdi for pumping grease higher than NLGI-2 and specific system design performance technical data.
